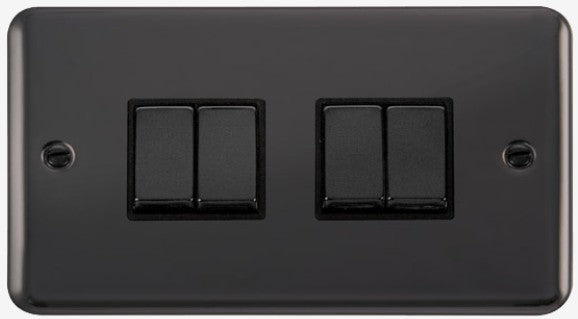

Click Deco Plus DPBN414BK – 10AX 4 Gang 2 Way Plate Switch – Black Nickel
Enhance your interior with the Click Deco Plus DPBN414BK, a 4 gang 2 way switch designed for style and performance. With a sleek black nickel finish, black insert, and matching gasket, this plate switch delivers a sophisticated, screwless look while offering full switching flexibility for your lighting.
Key Features:
- 4 Gang, 2 Way Switching – Controls up to four lighting circuits from two locations
- 10AX Rated – Suitable for both resistive and inductive loads (e.g. fluorescent lighting)
- Compatible with MiniGrid® Modules – Offers customisation and ease of installation
- Contemporary Screwless Design – Curved edges with a slim profile and matching gasket
- High Quality Construction – Stainless steel faceplate and durable Urea insert
Product Details:
- Order Code: DPBN414BK
- Plate Dimensions: 146mm (W) x 88mm (H) x 8mm (D)
- With Gasket: 149mm x 91mm x 9mm
- Fixing Centres: 120.6mm
- Voltage: 250V AC | Frequency: 50Hz
- Inductive Load Rating: 10AX
- Termination Type: Screw
- Terminal Size: Ø3.5mm | Torque: 0.5Nm
- Terminal Capacity: 4 x 1.5mm² or 2 x 2.5mm² solid
- Back Box Depth Required: Minimum 25mm
- Ingress Protection: IP20
- Materials:
- Plate & Switch Cover: Stainless Steel
- Insert: Urea
- Rear Housing: Nylon
- Terminals: Brass
- Contacts: Silver “on-lay” Copper/Brass
- Earth Strap: Mild Steel
- Operating Temperature: -5°C to +40°C
- Antimicrobial Certified: No
Ideal for residential applications, the DPBN414BK combines sleek aesthetics with reliable, multi-point lighting control.
